Teryx KFI Plow Kit - Synthetic Rope Applications

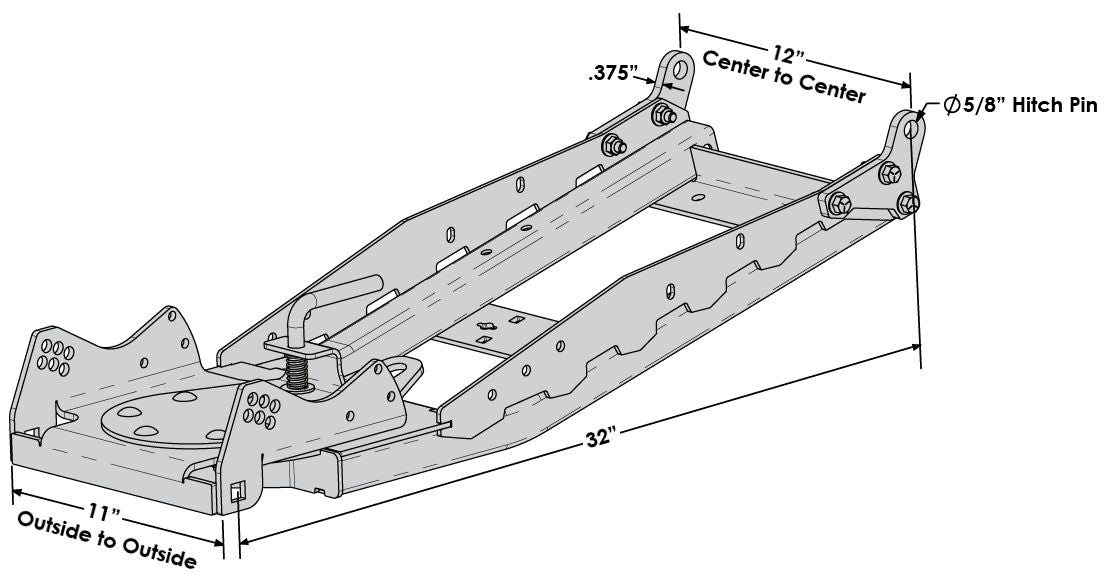

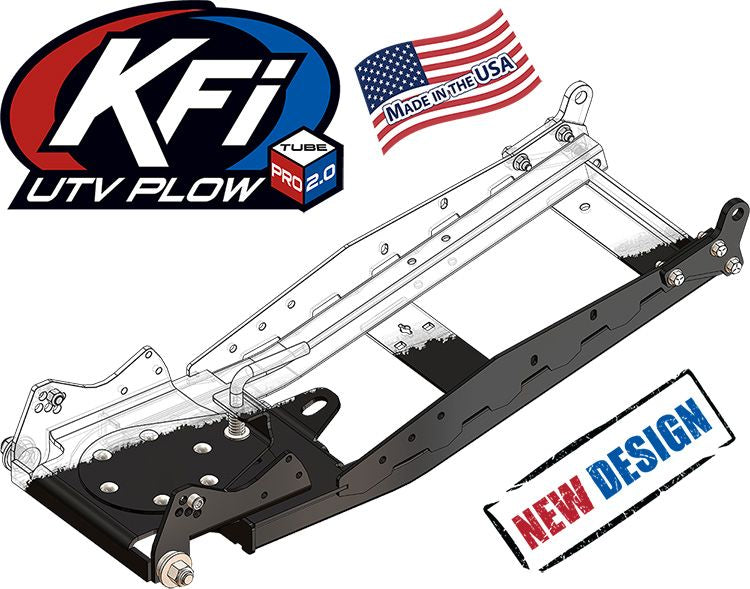

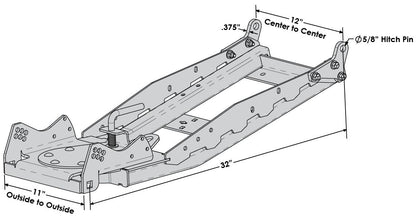

Qty. 1 - 106300 - PRO 2.0 UTV PUSH TUBE

• Improved Manufacturing
• Easier Install For All Plow Accessories

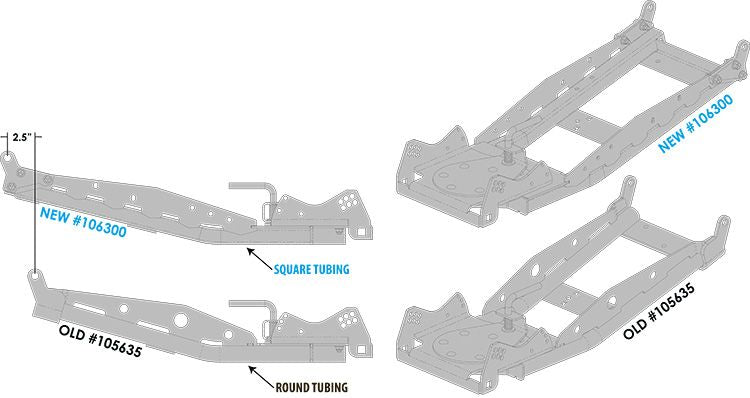

• Added 2.5" Of Overall Length
• Works With All KFI Plows

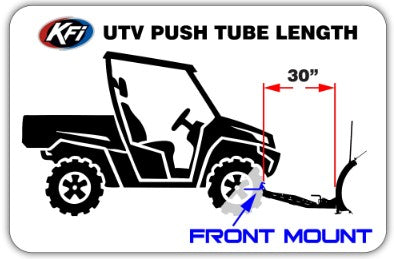

• Front Mount Design with 30"+ of lift height
• 100% MADE IN USA
• Heavy Duty 1-1/2" 12 Gage Square Steel Tubing
• Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
• 6" Diameter POM Injection Molded Rotator Bushing
• Easy-Pull Pin Blade angle adjustment
• Multi-position Plow Lift Bracket
• 6 five degree blade pitch adjustments
• 3 blade angle positions that rotate the blade up to 25 Degrees
• Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• 2-Year KFI Warranty

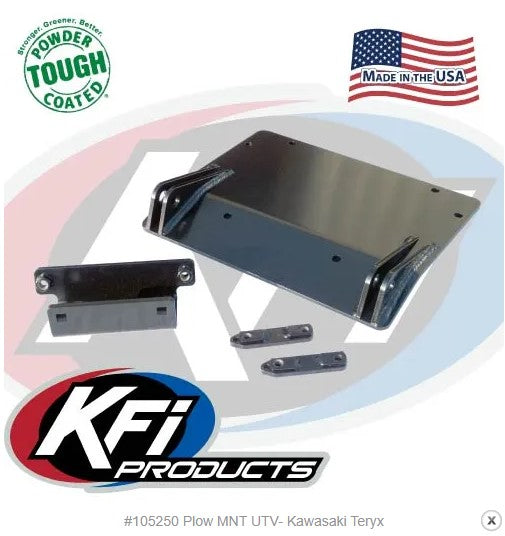

Qty. 1 - 105250 Plow MNT UTV- Kawasaki Teryx

• 100% Made in the USA

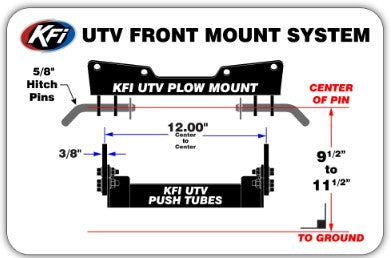

• Front Lower Plow Mount System: Allows for easy attachment and removal of the plow.
• Uses Two Standard 5/8" Hitch Pins for Secure Connection (comes with push tubes)
• Plate Material: Constructed from 1/4" thick grade 50 steel for durability and strength.
• Plow Mounting Tabs: Made from 1/4" thick grade 50 steel to ensure a secure fit.
• Superior Finish Preparation: Unlike competitors, products undergo metal bead blasting before powder coating to provide the best possible finish.
• Powder Coated Black: Ensures supreme durability and corrosion resistance.
• Installation: Comes with complete instructions for hassle-free installation.
• All Necessary Hardware Included: Provides all the mounting hardware needed for installation.
• Satisfaction Guaranteed

This mount offers a robust and durable option for UTV plowing needs, ensuring long-lasting performance and ease of use.

KFI Application Chart

Qty. 1 - 106270 Standard Plow Fairlead Pulley - Synthetic Cable

NOTE: FOR SYNTHETIC CABLE USE ONLY!!

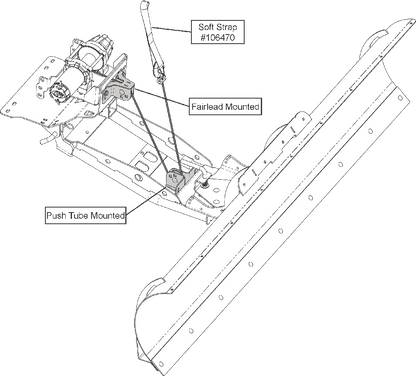

• Multi Purpose Use

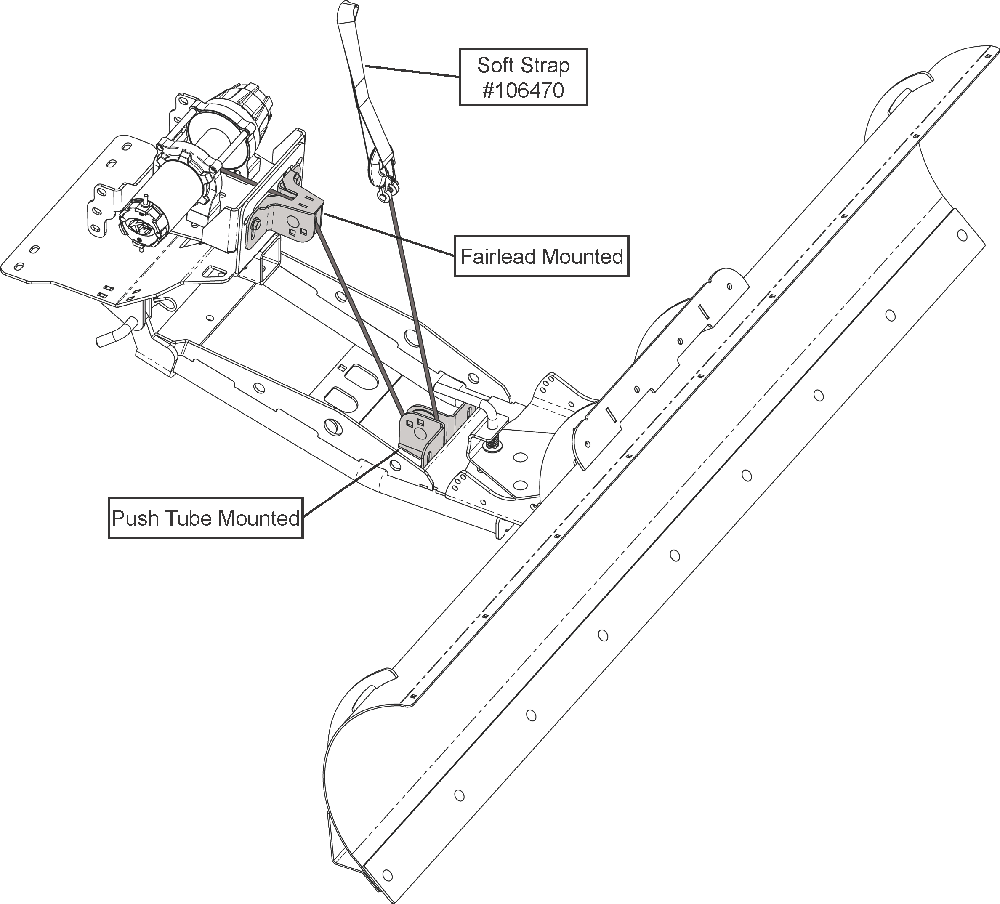

• Fairlead mounted or push tube mounted.
  • Works on both UTV Push Tubes (#106300 / #106310 / #105635) and ATV Push Tubes #105000
  • 12" Soft Strap #106470 recommended to attach winch cable hook back to the machine.
• For use with STANDARD size winches with a 4.875" bolt up pattern.
  • If your winch is a WIDE winch with a 6.60" bolt up pattern please see part #106465.
• Replaces standard winch fairlead during plow season.
• Provides large 2-1/8” diameter wheel for smoother cable movement when plowing compared to standard 7/8” rollers.
• Guide wheel has a curved cable groove to help eliminate cable flattening, which leads to snapped cables during the plowing season.
• Eliminates potential cable kink caused by small roller contact and abrupt angle changes.
• Multiple wheel positions for different applications and cable angles.
• Stationary aluminum wheel eliminates pinching of synthetic cable.

Instructions:

Plow Instructions

Push Tube Instructions

Plow Mount Instructions

Synthetic Rope Pulley Instructions
